Wired Connection

Follow the procedure below to setup a printer.

Note

  1. Make sure printer is turned on before starting wired connection setup.

    If the power is on, the ON lamp (A) will be lit.

    figure: ON lamp lights up

    Important

    • If printer is performing cleaning, print head alignment, or other processes, wait for the process to finish, before starting setup.
  2. If HOME is displayed on the left side of the screen, tap HOME.

    HOME screen
  3. You will need an Ethernet cable (sold separately).

    figure: Ethernet cable
  4. Remove the Cap (B) from the port located on the left side at the back of the printer.

    figure: Remove the cap
  5. Connect the printer and a network device (router, etc.) with an Ethernet cable (C).

    Do not connect to any other port.

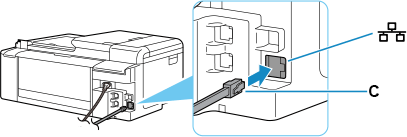

    figure: Connecting ethernet cable
  6. Tap Network (D).

    HOME screen: Select Network
  7. Tap Wired LAN.

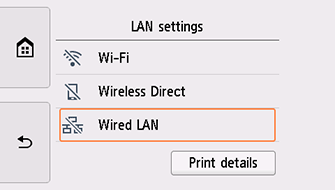

    LAN settings screen: Select Wired LAN
  8. Tap Enable/disable Wired LAN.

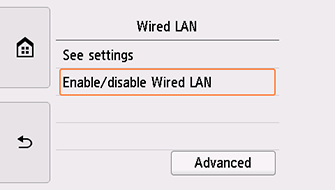

    Wired LAN screen: Select Enab./dis. wired LAN
  9. Tap Enable.

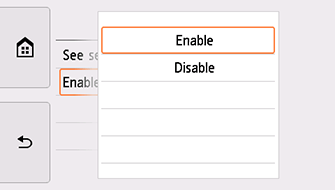

    Wired LAN screen: Select Enable
  10. If the screen on the below appears, tap OK.

    If the following screen is not displayed, proceed to the next step.

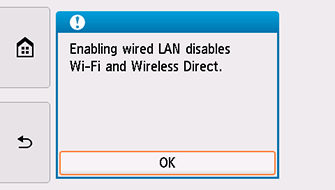

    Screen: Enabling wired LAN disables Wi-Fi and Wireless Direct.
  11. Tap HOME on the left side of the screen.

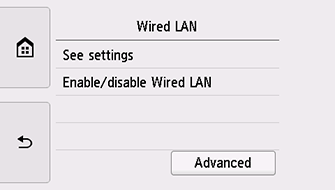

    Wired LAN screen
    HOME screen

    The network connection setup is now complete.

    When connection is complete, Network appears at the bottom left of the screen.

    If performing setup with software, return to the software and proceed with the installation.

    Windows

    Click Setup icon in the taskbar, follow the on-screen instructions to proceed with setup.

    taskbar

    macOS

    Click Setup icon in the Dock, follow the on-screen instructions to proceed with setup.

    Dock
